05 Straight & Level

Aim:

To fly the gyro at a constant height, speed, and direction, and in balance.

Considerations:

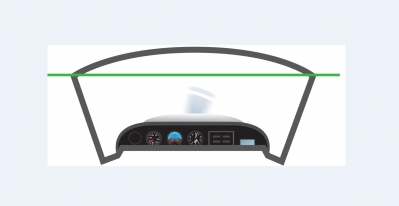

• Horizon
  • the line where the earth’s surface and the sky appear to meet.
• Fly using aircraft’s nose with the horizon

• 4 forces acting in flight
  • Lift, Weight, Thrust, Drag


• Equilibrium
  • Constant direction & speed
  • Lift = Weight
  • Thrust = Drag


• Production of Lift
  • Angle of Attack vs Airspeed


• Power + Attitude = Performance

• Trim to remove stick force

Airmanship:

• Lookout
  • See and be seen
  • Sectored scan - 20 degrees/2 seconds
  • Clock code
• Handover of controls
  • "I have control/You have control"
  • "Follow me through"
• Area Orientation
  • Local landmarks and boundaries
• VFR Minima's
  • Clear of cloud
  • In sight of surface
  • Vis 5km

• IMSAFE

Aircraft Management:

• Stick, Throttle & Pedal use
  • Positive and smooth movements
• Trim
  • Back pressure                         trim aft
  • Forward pressure                   trim forward
• T's & P's
  • Green & normal
• Cruise ERPM

• Fuel Management

Human Factors:

• Blind spots
  • Move the head
• Stress/Information Overload
  • Practise helps to overcome


Exercise:

Select

• Ref point on horizon into wind
• Ref altitude

Demo:                 S&L @ 4500 RPM
